Plant protection drone

Symmetrical wheelbase: 2280mm
Unfolded dimensions: 1783x1783x790mm
Folded dimensions: 950x912x918mm
Medicine tank capacity: 50L
Overall weight (including battery): 48kg
Battery: 18S30000mAh
Standard takeoff weight: 98kg
Maximum flight speed: 13m/s
Spray width: 8~10m
Propeller size: 56in
Hovering time at full load: 9min

The agricultural plant protection drone is an efficient operation equipment specially designed for agricultural plant protection scenarios. It integrates advanced technology and practical functions, aiming to improve the efficiency and accuracy of agricultural spraying operations.

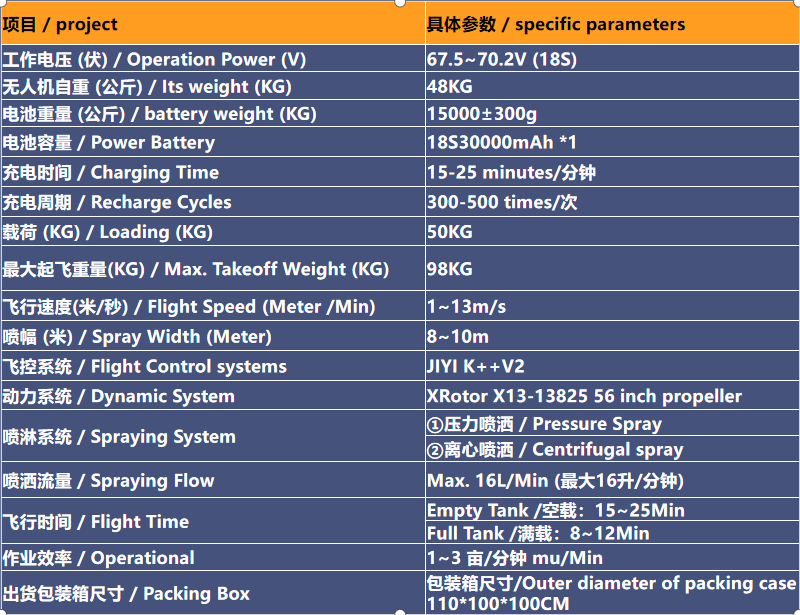

Core Performance and Parameters

Power and Battery Life: The operating voltage is 67.5~70.2V (18S), equipped with an 18S 30000mAh battery. It takes only 15-25 minutes to charge and can be recharged 300-500 times. The flight time is 8~12 minutes when fully loaded and 15~25 minutes when empty, meeting the needs of continuous operations.

Load and Efficiency: It has a self-weight of 48KG, a maximum take-off weight of 98KG, and a load capacity of 50KG. The spray width is 8~10 meters, the maximum spraying flow rate is 16 liters per minute, and the operation efficiency is as high as 1~3 mu per minute, which is much higher than traditional manual operations.

Precise Control: Equipped with the JIYI K++V2 flight control system and the XRotor X13-13825 power system, it supports flight speed adjustment of 1~13 meters per second. It is equipped with dual modes of pressure spraying and centrifugal spraying, which are suitable for different crops and pesticide needs.


Highlights of Intelligent Functions

Fully Autonomous Operation: It supports Android/PC ground station operation, route planning and A/B point operation, with one-key take-off/landing to reduce manual intervention. The functions of continuous spraying at breakpoints and automatic return when the battery is low or there is no pesticide ensure the continuity of operations.

Environmental Adaptability: The microwave altitude-fixing radar realizes stable altitude fixing, and the terrain-following flight function can adjust the height according to the terrain undulation. The obstacle avoidance radar detects surrounding obstacles in real time and automatically detours, improving safety in complex environments.

Comprehensive Protection Mechanism: It includes vibration protection, signal loss protection, pesticide cut-off protection and motor detection functions. Combined with real-time camera and image transmission, the operation process can be monitored and traced.


Standard Configuration

The equipment is standardly equipped with rich components, including 18S 8L dual water pumps, 4 centrifugal nozzles, H12 remote control, ground defense radar, obstacle avoidance radar, CAN HUB module, 2 pieces of 18S 30000mAh batteries and 18S 7000W intelligent charger, meeting the needs of ready-to-use.

With the core advantages of high efficiency, intelligence and safety, this agricultural plant protection drone is widely applicable to various agricultural scenarios such as field crops, orchards and tea gardens, providing strong technical support for modern agricultural production.
